Executive Engineering Appraisal: Navigating China's Prototyping Ecosystem
In contemporary electronic hardware engineering, the prototype phase is no longer merely a sanity check for schematic continuity; it represents the primary proving ground for electromagnetic compatibility (EMC), high-speed differential signal integrity, and manufacturability at scale. As silicon geometries drop below 5nm and peripheral integrated circuits adopt ultra-fine pitch ball grid arrays (BGA, pitch ≤0.35mm), bare board fabrication tolerances and component placement kinematics have converged. Sourcing engineering prototypes from China is no longer just a cost-arbitrage calculation—it has become a strategic agility requirement for hardware teams across Silicon Valley, Munich, Tokyo, and Cambridge.
Shenzhen ICSLOVE Technology Co., Ltd. (operating internationally under the PCB ADEPT enterprise banner) anchors its operations directly within the Fuhai Subdistrict of Bao'an District, Shenzhen—the undisputed epicenter of world hardware commercialization. Housing 6 high-speed YAMAHA SMT lines, 4 specialized through-hole DIP soldering lines, and an integrated 8,000 m² cleanroom manufacturing footprint, our facility closes the gap between pure digital design files and production-grade physical validation. With over 15 years of institutional EMS experience, we dissect the systemic advantages, quotation variables, and structural risk-mitigation vectors essential for procurement officers and Principal Hardware Engineers evaluating Chinese prototype PCB manufacturers.
Front-End DFM & Signal Auditing
Every Gerber, ODB++, or IPC-2581 dataset undergoes 32-point computerized Design for Manufacturability (DFM) analysis prior to tooling. We verify minimum annular rings, solder mask sliver thresholds, aspect ratio drilling limits, and impedance coupon matching within hours of RFQ submission.
Turnkey SMT & Component Kitting
By operating turnkey procurement pipelines with tier-one franchise distributors (Arrow, Avnet, Mouser, DigiKey) and authorized domestic semiconductor agents, we eliminate broker markups and mitigate counterfeit active component risks, achieving 01005 passives and 0.3mm BGA placement reliability.
Zero-Defect Quality Assurance
Quality control is maintained through 3D Solder Paste Inspection (SPI), inline optical inspection (AOI) before and after reflow, First Article Inspection (FAI), and automated X-ray inspection (AXI) for hidden BGA/QFN solder voids, verifying solder wetting according to IPC-A-610 Class 3 specifications.
Industrial Agglomeration
The Shenzhen Supply Chain Advantage: Speed, Scale & Proximity
Why China's Greater Bay Area remains the world's most resilient and cost-effective engine for rapid electronics prototyping and pilot production.
2-Hour Component Sourcing Loop
Our proximity to Huaqiangbei and major semiconductor bonded warehouses enables same-day component retrieval for passives, connectors, and active ICs, compressing Bill of Materials (BOM) kitting from weeks to hours.
Instant Substrate Availability
Direct allocations with laminate leaders Shengyi (S1000-2M), ITEQ, Ventec, Isola, and Rogers allow rapid fabrication of complex high-Tg, low-loss, and high-frequency stacks without raw material lead-time delays.
Vertical Process Integration
Laser Direct Imaging (LDI), plasma desmearing, automated vertical continuous plating (VCP), and CNC milling operate within our domestic perimeter, avoiding external subcontracting bottlenecks.
Frictionless Air Logistics
Located within 30 minutes of Shenzhen Bao'an International Airport (SZX) and 90 minutes of Hong Kong International Hub (HKG), offering direct 24–48 hour transit times to North America and Western Europe.
Risk Management Protocol
Enterprise Procurement Criteria: Mitigating Vulnerabilities in Offshore Prototyping
Global hardware brands and Original Equipment Manufacturers (OEMs) face specific operational hazards when contracting prototype runs to overseas PCB factories. A botched prototype run costs more than the initial invoice; it causes missed launch windows, burnt investor capital, and critical design iterations. At PCB ADEPT, our quality operations directly address the four major vulnerabilities in global electronics procurement:
1. Counterfeit Silicon Elimination
Our IQC laboratory inspects component packaging, date codes, laser top markings, and pin oxidation. High-risk active ICs undergo decapsulation inspection and X-ray die verification to guarantee genuine parts from TI, STMicroelectronics, ADI, Microchip, and NXP.
- 100% BOM provenance tracking
- Moisture Sensitivity Level (MSL) baking control
- Complete anti-static ESD-controlled storage
2. Intellectual Property (IP) Protection
Hardware security is critical. PCB ADEPT operates isolated internal secure networks where client CAD, Gerber, and firmware files are stored on encrypted, role-restricted local file servers protected by non-disclosure legal covenants.
- Air-gapped firmware flashing stations
- Strict cleanroom photographic prohibitions
- Multi-tiered non-disclosure legal frameworks
3. NPI to Volume Scalability
Prototyping on one manufacturing line and transitioning to another factory for mass production frequently causes yield issues. Our pilot SMT lines use identical YAMAHA pick-and-place equipment and reflow profiles as our mass-production lines.
- Seamless transition from 5 pcs to 500,000 pcs
- Unified thermal profiles across production
- Zero re-engineering during scale-up phases
Quotation Architecture
How China Prototype PCB Quotes Are Calculated: The Engineering Formula
Understanding the pricing elements in your PCB prototype and assembly quote enables faster cost-optimization and eliminates project surprises.
| Cost Parameter | Standard Specification (Baseline Cost) | Advanced / Custom (Quote Multiplier) | Engineering Impact on Quote |
|---|---|---|---|
| Layer Count & Stackup | 1–4 Layers (Standard FR-4, 1.6mm) | 6–60 Layers, Any-Layer HDI, Hybrid RF | Layer count drives lamination cycles, prepreg consumption, and drilling pass counts. |
| Base Laminate Material | Standard FR-4 (Tg 130–140°C) | Shengyi High-Tg (Tg 170–180°C), Rogers 4350B, Polyimide | High-frequency PTFE and polyimide materials carry higher raw material square-inch costs. |
| Minimum Trace / Spacing | ≥4/4 mil (0.1mm / 0.1mm) | ≤2.5/2.5 mil (0.065mm / 0.065mm) via LDI | Sub-3mil track widths require Laser Direct Imaging and tighter etching control windows. |
| Via Technology | Standard Mechanical Through-Holes | Laser Microvias, Blind/Buried, VIPPO (POFV) | Via-In-Pad Plated Over requires copper plating, epoxy plugging, and surface planarization. |
| Finished Copper Weight | 1 oz (35µm) Inner / Outer | 2 oz to 10 oz+ Heavy Copper | Thicker copper increases etching cycle times, acid consumption, and solder mask requirements. |
| Surface Finish | Lead-Free HASL (Hot Air Solder Leveling) | ENIG (Electroless Ni / Immersion Au), ENEPIG, Hard Gold | ENIG and ENEPIG provide flat pads for fine-pitch BGAs; gold price fluctuations influence quotes. |
| Controlled Impedance | Standard Tolerance (Uncontrolled) | ±10% or ±5% Single-Ended & Differential | Requires TDR (Time-Domain Reflectometer) coupon verification on production panels. |
| Electrical Test Method | Flying Probe Testing (Standard Prototype) | Dedicated Fixture / Bed of Nails (High Volume) | Flying probe avoids upfront NRE tooling charges for small prototype runs (1–50 pcs). |
Technology Horizons
PCB Fabrication Trends Shaping Next-Generation Prototypes
The manufacturing technologies transitioning from aerospace and military applications into consumer, industrial, and automotive designs.
Modified Semi-Additive Process (mSAP)
Traditional subtractive etching reaches physical limits below 50µm lines. Our advanced prototype lines employ mSAP methodologies, electroplating copper patterns onto ultra-thin foil to produce trace walls with near-vertical 90-degree profiles for high-speed differential pairs.

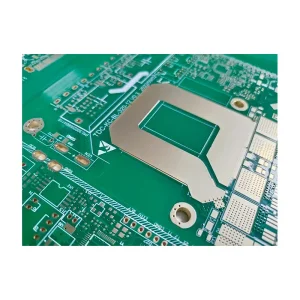

Thermal Coins & Heavy Copper Hybridization
As SiC and GaN motor drivers and power converters push power densities past historic limits, standard thermal vias are insufficient. We fabricate prototype stackups integrating solid embedded copper coins directly beneath switching stages to sink heat through conduction.
Hybrid Multilayer Stackups (PTFE + FR-4)
Millimeter-wave radar, satellite up/downconverters, and anti-drone RF jammers operate above 10GHz, where standard FR-4 dielectric losses are prohibitive. We laminate heterogeneous hybrid boards using Rogers 4350B or Taconic cores bonded to high-Tg FR-4 digital layers, balancing signal performance with unit economics.
Engineering Deployments
Mission-Critical Application Scenarios: From Concept to Field Execution
Real-world integration examples demonstrating how specialized PCB fabrication parameters support operational reliability across critical sectors.
Industrial Raspberry Pi HATs & SOM Carriers
For industrial automation gateways and IoT edge computing, standard consumer headers fail under vibration. We build custom multi-layer industrial HAT expansion boards with gold-plated pins, RS485/CAN bus transceivers, integrated wide-input DC-DC regulators, and conformal coating.

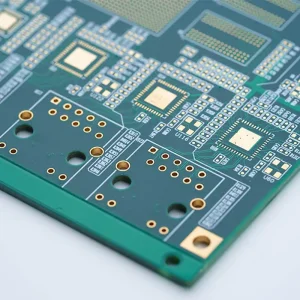

Automotive & Aerospace High-Tg (TG170–TG300)
Under-the-hood automotive ECUs and aerospace avionics experience severe thermal cycling. Utilizing polyimide and phenolic-cured high-Tg FR-4 cores with low Z-axis thermal expansion coefficients (CTE ≤45 ppm/°C), our boards eliminate via barrel fatigue and delamination risks.
Tactical Anti-Drone & Microwave Countermeasures
Modern defense systems require broadband RF power amplification across 400MHz to 6GHz. We manufacture tight-tolerance coplanar waveguides with ground vias, immersion silver/ENEPIG finishes, and thermal ground stitching capable of dissipating high continuous wattage.
Medical Diagnostic Wearables & Rigid-Flex
Point-of-care medical devices require ultra-lightweight form factors that flex within dynamic enclosures. Our 4-to-12 layer rigid-flex circuit boards employ adhesive-less polyimide cores, rolled annealed (RA) copper, and laser-defined coverlays certified to IPC-6013 Class 3.
Quality & Compliance Assurance
Regulatory Compliance, IPC Standards, and Export Integrity
Procurement teams navigating overseas electronics supply chains require verified compliance documentation. Solder defects, counterfeit resins, or RoHS infractions can block import distribution or trigger product recalls. PCB ADEPT operates an integrated quality assurance framework where every batch leaves Shenzhen backed by traceable documentation:
IPC Workmanship Standards
Bare boards conform to IPC-6012 (Rigid), IPC-6013 (Flex/Rigid-Flex), and IPC-A-600 Class 2 or Class 3 acceptance criteria. Microsection analysis, copper plating thickness testing (≥20µm hole wall copper), and solderability assessments are documented in every lot Certificate of Conformance (CoC).
RoHS 3 & REACH Compliance
Our lead-free production lines use lead-free solder paste alloys (SAC305: Sn96.5/Ag3.0/Cu0.5) and wave soldering baths compliant with EU Directive 2015/863 (RoHS 3) and SVHC regulations under REACH. XRF chemical testing verifies zero restricted substance contamination.
Customs & International Logistics
Navigating HS Codes (such as HTS 8534.00 for printed circuits) and export declarations requires administrative precision. We support flexible Incoterms (EXW, FOB Shenzhen/Hong Kong, CIF, and DDP with import duty pre-settled) via express carriers (DHL, FedEx, UPS) to ensure seamless delivery.
Technical Clarifications
Frequently Asked Questions: Procurement & DFM Insights
Practical engineering answers to the critical technical and commercial questions hardware buyers ask before placing prototype orders.
What is the true Minimum Order Quantity (MOQ) and turnaround time for prototypes?
Our prototype fabrication requires an MOQ of just 1 piece, scaling efficiently up to 500 pieces for engineering trial runs and NPI validation. For standard 2-to-4 layer rigid FR-4 boards, our expedited quick-turn bare-board service delivers in 48 hours. Turnkey PCBA (bare boards, full BOM component sourcing, SMT, and testing) averages 3 to 9 working days, depending on active component lead times and whether client-directed alternative substitutions are authorized during DFM.
Which file formats are required to receive an accurate, binding DFM quote?
For bare-board fabrication, we recommend RS-274X Gerber files or native ODB++ / IPC-2581 databases, accompanied by an explicit fabrication drawing detailing layer stackup, finished copper weights, dielectric thicknesses, solder mask color, surface finish (e.g., ENIG 2µ" gold), and controlled impedance tables. For turnkey PCBA, please also provide a structured Bill of Materials (BOM) in Excel format with explicit Manufacturer Part Numbers (MPN), approved second-source equivalents, reference designators, and a centroid pick-and-place (XY coordinate) file.
How do you verify solder joint integrity on blind/buried vias and fine-pitch BGAs?
Because ball grid arrays (BGA), quad-flat no-leads (QFN), and land grid arrays (LGA) conceal their solder joints underneath the component body, standard 2D optical inspection is insufficient. We route 100% of assemblies containing these packages through high-resolution 3D Automated X-ray Inspection (AXI). The AXI system measures solder ball roundness, detects micro-bridging, identifies cold solder joints, and quantifies solder voiding percentages, maintaining total void area below 15% (exceeding IPC-A-610 Class 3 limits of 25%).
Can PCB ADEPT source components from authorized Western distributors and domestic equivalents?
Yes. Our sourcing department maintains direct corporate accounts with global authorized distributors including Arrow Electronics, Avnet, DigiKey, Mouser, and Element14 for core silicon (Texas Instruments, Analog Devices, STMicroelectronics, Microchip, NXP). Concurrently, our Shenzhen engineers maintain vetted connections with domestic semiconductor manufacturers. If a legacy western microchip exhibits a 52-week lead time or unreasonable broker pricing, our engineering team can identify pin-compatible, functionally equivalent domestic alternatives for your hardware engineers to review and approve.
What is the standard controlled impedance tolerance PCB ADEPT achieves on prototypes?
Our standard controlled impedance tolerance is ±10% for single-ended traces (e.g., 50Ω RF transmission lines) and differential pairs (e.g., 90Ω USB, 100Ω Ethernet/LVDS). Upon request during engineering review, our CAM team can simulate the stackup using Polar SI9000 electromagnetic field solver software, adjusting dielectric prepreg thickness and trace geometry to achieve a tighter ±5% tolerance. Every impedance-controlled production panel includes dedicated test coupons analyzed via Time-Domain Reflectometry (TDR), with reports included in the quality dossier.
What is the difference between Flying Probe Testing and Fixture-Based Testing for prototypes?
Flying probe testing utilizes programmable robotic test arms equipped with micro-needles that travel across the bare board surface, verifying netlist continuity and isolation without requiring dedicated test fixtures. This eliminates upfront non-recurring engineering (NRE) tooling charges, making it ideal for runs of 1 to 50 boards. When transitioning to pilot volumes (500+ units), we design bed-of-nails test fixtures (In-Circuit Testing / ICT) that contact all test points simultaneously, reducing test cycle times from minutes to seconds per unit.
How does PCB ADEPT handle Box Build and mechanical system integration?
Beyond SMT and THT circuit assembly, our Bao'an facility provides turnkey electro-mechanical box build integration. This includes rapid CNC enclosure milling, 3D printing of prototype bezels, plastic injection molding tooling, custom cable harness fabrication, silicone potting, MCU firmware flashing via automated programmers, thermal burn-in testing, and custom retail packaging, delivering fully tested end products ready for deployment.
Industrial & Specialized Solutions

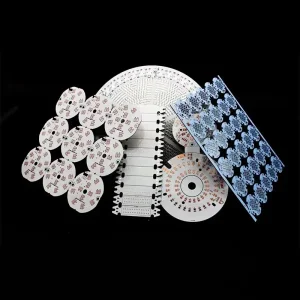

Advanced Production Capabilities: RF, High-Tg & Aluminum Substrates
