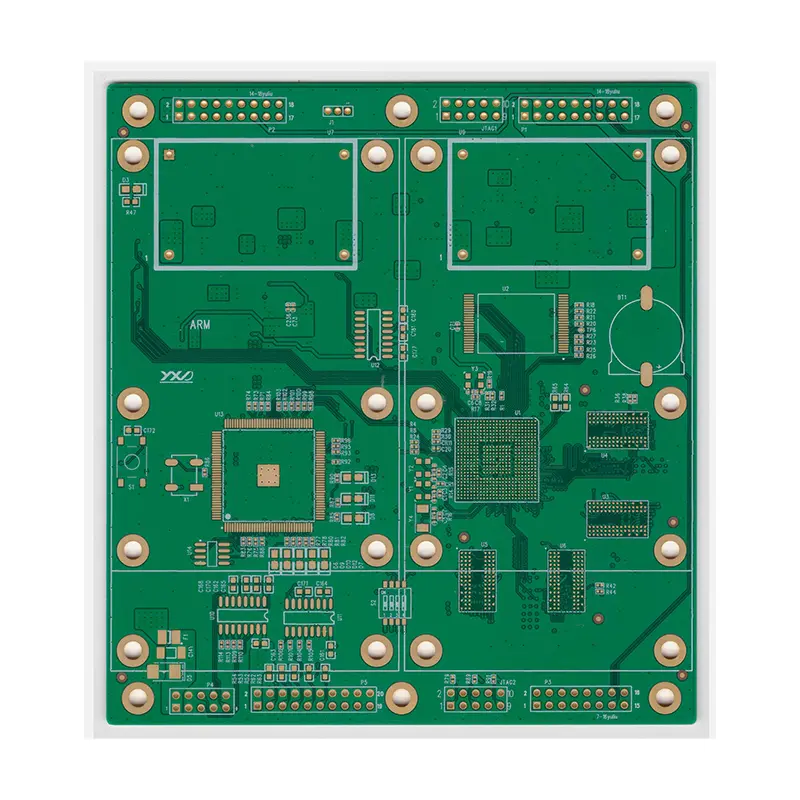

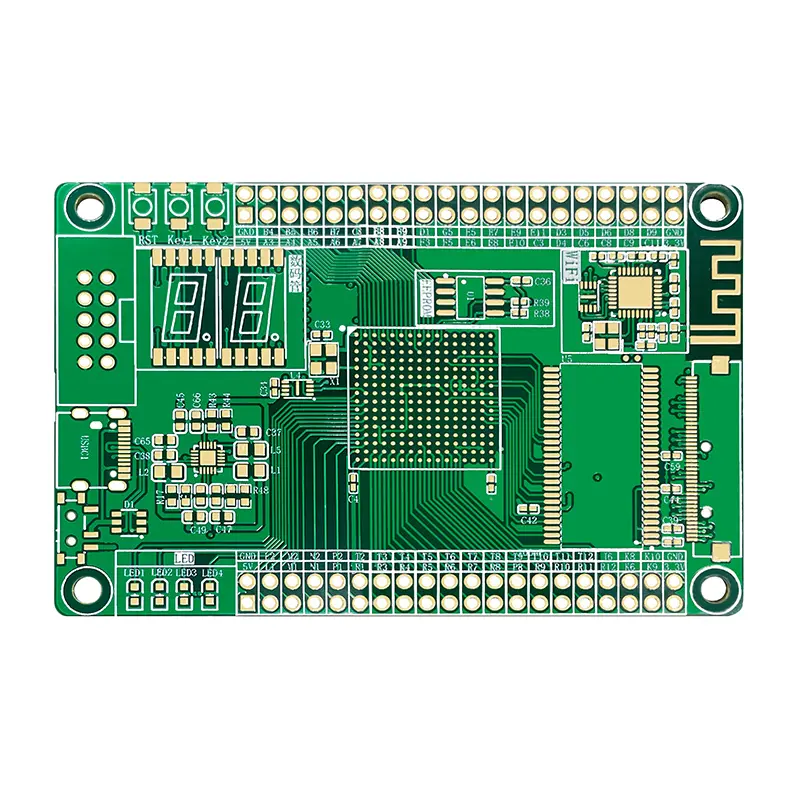

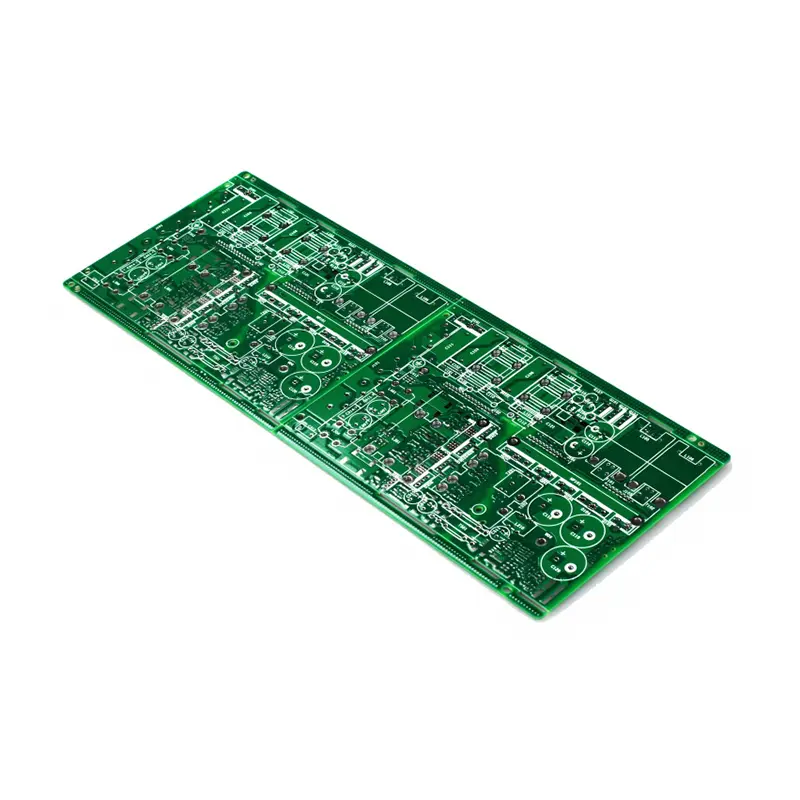

China China PCB Prototype Suppliers: Fast Manufacturing Solutions from Leading PCB Factory for Modern Electronics Manufacturers, Manufacturer
Product Description
A Historical Perspective: The Evolution from "Months" to "Days"
Looking back at the history of the electronics industry, PCB manufacturing was once a lengthy and painful bottleneck.
- ▶ The Manual Era (Mid-20th Century): In the early days, circuits were built using "point-to-point" wiring, which was bulky and unreliable. The advent of PCBs was a major step forward, but the process relied entirely on manual drafting, film exposure, and chemical etching. An iteration cycle could take weeks or even months.
- ▶ Standardization and the CAM Era (Late 20th Century): With the development of Computer-Aided Manufacturing (CAM) technology, the Gerber format became the standard, enabling the initial digital separation of design and manufacturing. However, the process still required physical film and tooling (e.g., drilling NC programs), remaining cumbersome.
- ▶ The Rapid Prototyping Revolution (Early 21st Century – Present): The internet, Laser Direct Imaging (LDI), automated precision drilling, and standardized materials gave rise to specialized quick-turn PCB services. Through online ordering, automated production lines, and efficient logistics networks, they have compressed PCB prototype lead times from "weeks" to "days," fundamentally changing the game.
- ※ The Historical Lesson: Each technological advancement has compressed the time from "idea" to "physical object." This increase in speed has essentially transformed product development from a serial, high-cost "gamble" into a parallel, low-cost process of "rapid iteration and failure."
Rapid Prototyping and Product Validation: The Flywheel for Accelerated Market Launch
The value of rapid prototyping lies not just in its speed, but in how it empowers the entire validation process.
-
①Functional Validation: This is the core step. After assembling the board, engineers perform power-on tests and basic debugging to verify the circuit design is correct. Rapid prototyping allows design teams to discover and fix schematic or component selection errors within days.
-
②Performance Validation: In high-frequency, high-speed, or high-power applications, PCB layout is critical to signal integrity, power integrity, and Electromagnetic Compatibility (EMC). Prototypes enable early lab testing to assess whether strict performance metrics are met.
-
③DFM/DFA Validation: This is Design for Manufacturability/Assembly validation. The physical board allows engineers to check component placement, spacing, thermal management, and suitability for automated assembly. Identifying DFM/DFA issues early prevents massive losses during mass production.
-
④Mechanical and Form Factor Validation: Prototypes help verify that the PCB's dimensions, shape, and connector positions perfectly match the product enclosure, providing accurate data for mechanical design.
※ The Logic of Speed: Each rapid "design-prototype-validate" iteration eliminates a potential risk point. The shorter the iteration cycle, the more validation rounds can be completed in a given time, accelerating the product's maturity and ensuring a smooth transition to mass production and a high-quality market launch.
Technological Advancements: The Foundation of Rapid Manufacturing
Modern rapid prototyping is enabled by several key technologies:
Laser Direct Imaging (LDI)
Replaces physical film by using a laser to image the photoresist directly, offering high precision, speed, and adaptability for small-batch, high-mix production.
Automation & Digital Workflows
From Automated Optical Inspection (AOI) to flying probe testing and automated material handling, these processes minimize manual intervention, increasing efficiency and consistency.
High-Performance Materials
A wide range of materials, from standard FR-4 to high-frequency/low-loss (e.g., Rogers), high-Tg, and flexible substrates (PI), meets the rapid needs of diverse applications.
Online Collaboration Platforms
Customers submit Gerber files online, and the system automatically performs DFM analysis and provides instant quotes, streamlining the ordering process.
Common PCB Types and Key Process Parameter Requirements
Modern rapid prototyping caters to diverse board specifications and demanding process requirements:
| Image | PCB Type | Description | Key Parameters |
|---|---|---|---|
|

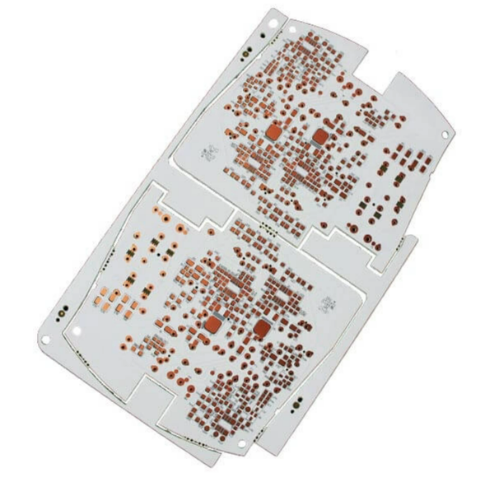

Single-Sided | Lowest cost, simple structure. Used in low-density consumer electronics. | Board Thickness: 1.0mm, 1.6mm Copper Weight: 1oz (35μm) Min. Trace/Space: 0.2mm |
|

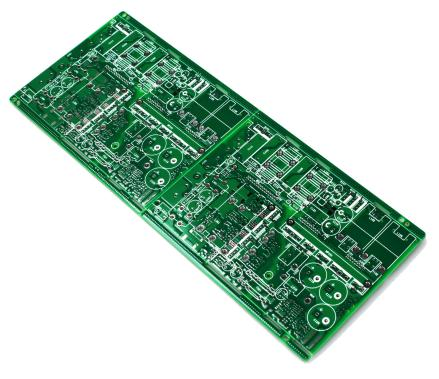

Double-Sided | The most common type, routing on both sides. Used in most standard electronic products. | Board Thickness: 1.0mm, 1.6mm Copper Weight: 1oz / 1oz Min. Trace/Space: 0.15mm / 0.1mm Vias: Mechanically drilled, hole size ≥0.3mm |
|

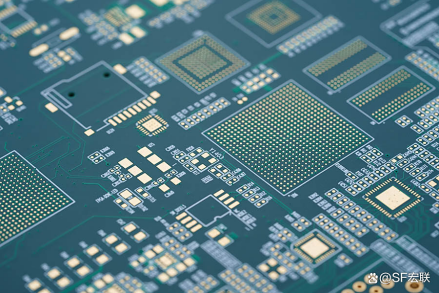

Multi-Layer | High density, high performance. Used in complex circuits like smartphones, industrial controls, and communication equipment. | Layers: 4–12 (common) Board Thickness: 1.0mm, 1.6mm Inner Layer Copper: 0.5oz / 1oz Min. Trace/Space: 0.1mm / 0.1mm Blind/Buried Vias: Increases cost, must be specified |
|

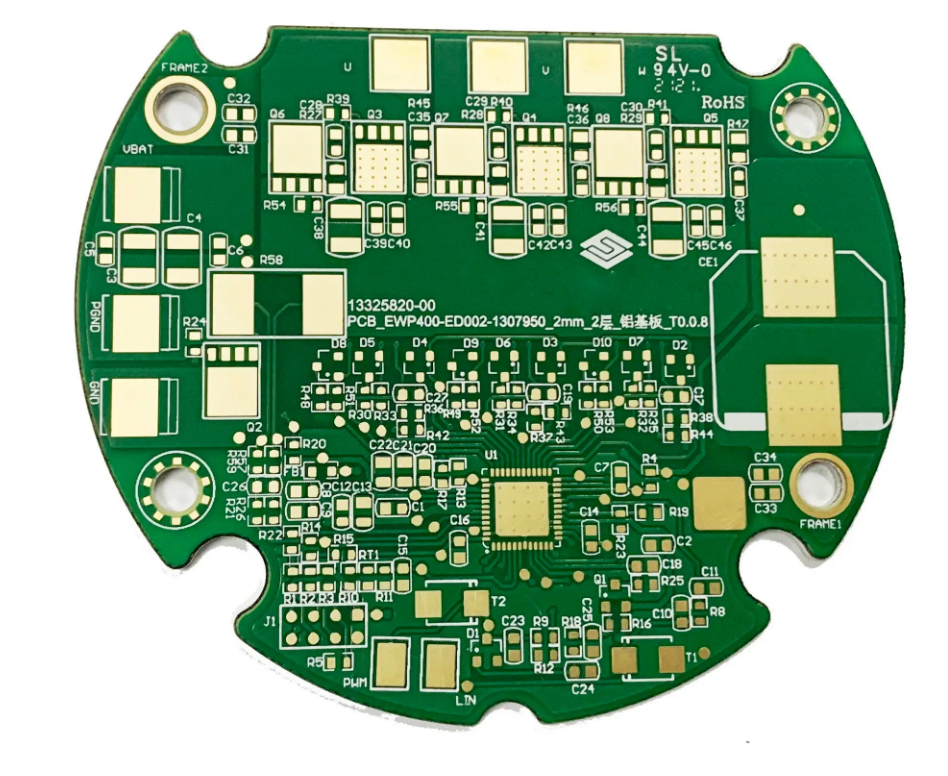

High-Freq. / High-Speed | Low loss, stable Dk/Df. Used in 5G, radar, satellite communication. | Material: Rogers, Taconic, etc. Loss Tangent (Df): Must be very low (e.g., Df < 0.004) Surface Finish: Often ENIG (Immersion Gold) for signal quality |
|

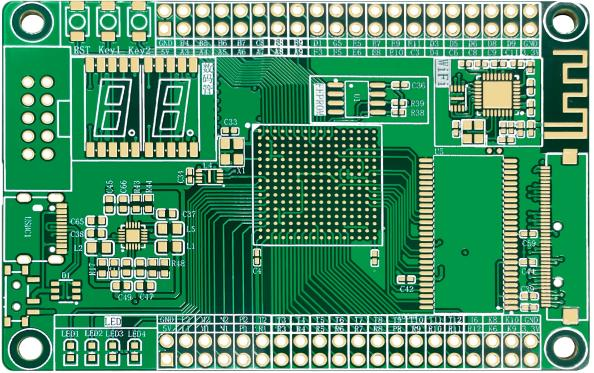

HDI | High-Density Interconnect, uses micro-vias. For space-constrained portable devices. | Min. Trace/Space: ≤0.075mm Laser Drilled Via Size: 0.1mm or smaller Stacked Via Structures: Any-layer interconnects |
|

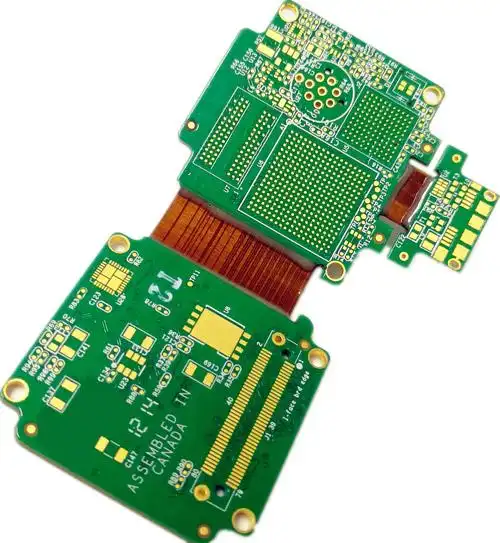

Flex / Rigid-Flex | Bendable, 3D assembly. Used in cameras, medical devices, wearables. | Substrate: Polyimide (PI) Bend Radius: A critical parameter Lamination Process: Complex for rigid-flex zones |
Conclusion
Rapid PCB prototyping has evolved from a supporting service into a strategic pillar of modern electronics innovation. It deeply embodies the modern R&D philosophy that "time is market, and validation is value." By understanding its critical importance, learning from historical trends and technological advancements, and mastering the process requirements for different PCB types, companies can build an efficient and reliable "design-validate-iterate" loop. This enables them to seize the initiative in a fiercely competitive market and ultimately win the race to bring successful products to market.
Send Inquiry
Frequently Asked Questions (FAQ)
Q1 What is rapid PCB prototyping and why is it important?
Rapid PCB prototyping refers to the fast-turnaround manufacturing of printed circuit board samples — typically within 24 hours to a few days. It is critical because it allows engineers to physically validate designs early, catch errors before mass production, and dramatically accelerate the product development cycle, reducing both time-to-market and overall R&D costs.
Q2 What file formats are needed to order a rapid PCB prototype?
The standard file format is Gerber (RS-274X), which includes all copper layers, silkscreen, solder mask, and drill files. Most online PCB platforms also accept ODB++ or IPC-2581 formats. A complete package typically includes Gerber files, a drill file (Excellon format), and a fabrication drawing specifying board thickness, material, and surface finish.
Q3 How does Laser Direct Imaging (LDI) improve PCB prototyping speed and accuracy?
LDI eliminates the need for physical photomasks (films) by directly writing the circuit pattern onto the photoresist using a laser controlled by digital data. This removes the film production step entirely, reduces setup time significantly, and improves pattern accuracy — especially for fine-pitch designs with trace/space below 0.1mm. It is one of the key technologies enabling same-day or next-day PCB prototyping.
Q4 What is the difference between HDI PCBs and standard multi-layer PCBs?
Standard multi-layer PCBs use mechanically drilled through-hole vias with a minimum hole size of around 0.3mm. HDI (High-Density Interconnect) PCBs use laser-drilled micro-vias as small as 0.1mm or less, enabling much finer trace/space (≤0.075mm) and higher component density. HDI boards are essential for compact, high-performance devices such as smartphones, wearables, and advanced medical equipment.
Q5 What is DFM validation and why should it be done during prototyping?
DFM (Design for Manufacturability) validation ensures that the PCB design can be efficiently and reliably manufactured at scale. During prototyping, engineers check for issues such as insufficient pad clearance, improper via placement, thermal management problems, and assembly constraints. Catching these issues at the prototype stage is far less costly than discovering them during mass production, where tooling changes and production delays can result in significant financial losses.
Q6 Which PCB material should I choose for high-frequency or 5G applications?
For high-frequency and 5G applications, standard FR-4 is generally not suitable due to its relatively high dielectric loss. Specialized materials such as Rogers (e.g., RO4003C, RO4350B) or Taconic are recommended because they offer a low and stable dielectric constant (Dk) and very low loss tangent (Df < 0.004). These properties are essential to minimize signal attenuation and maintain signal integrity at microwave and millimeter-wave frequencies. Surface finish is also important — ENIG (Electroless Nickel Immersion Gold) is commonly specified for its flat, solderable surface and excellent signal performance.
