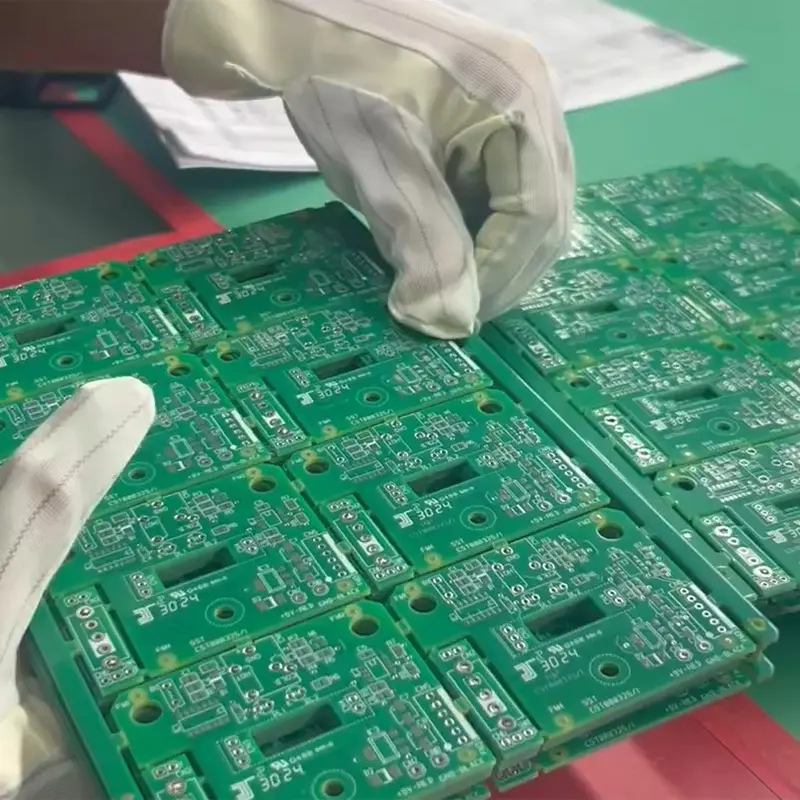

A multilayer PCB (Printed Circuit Board) consists of three or more conductive layers (signal layers, power layers, ground layers, etc.) alternately stacked with insulating layers, bonded together under high temperature and pressure. It achieves electrical connection between different layers through structures such as through-holes and blind vias. Below is a detailed explanation of its definition, core design challenges, and corresponding solutions, supplemented by diagrams for better understanding.
The core advantage of multilayer PCBs lies in their ability to implement complex wiring within limited space, meeting the miniaturization and high-performance requirements of electronic products. They are widely used in smartphones, servers, medical devices, and other fields.
In their structure:
- Conductive layers (copper foil) transmit signals and power.
- Insulating layers are mostly prepregs (e.g., epoxy resin).
- Solder mask layers protect circuits from short circuits.
- Surface finishing prevents copper foil oxidation.

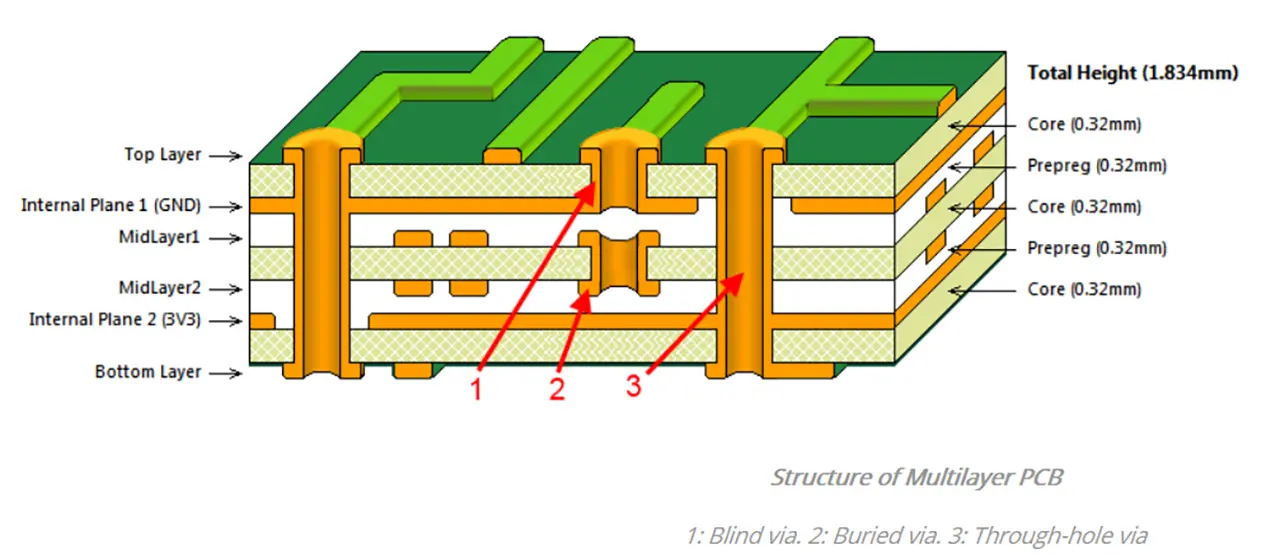

The diagram below shows the stackup structure of a 6-layer 1-step HDI (High-Density Interconnect) multilayer PCB, illustrating its layer stacking and via design:
| Design Challenge | Specific Issues | Solutions |
|---|---|---|
| 📡 Signal Integrity | High-speed signal transmission is prone to reflection and crosstalk, leading to signal distortion. The risk of crosstalk increases with more layers. |
|
| ⚡ Power Integrity | Power planes suffer from noise and voltage fluctuations; multiple voltage supplies are prone to mutual interference, causing chip crashes. |
|
| 📌 Wiring & Routability | Increased layers result in limited wiring space; some circuits are difficult to route and may become disorganized. |
|
| 🔥 Heat Dissipation | High-density layout causes heat accumulation in high-power components, damaging devices and affecting performance. |
|
| 🔧 Interlayer Alignment & Process | More layers require more lamination cycles (e.g., an 8-layer board needs 7 laminations); copper foil offset between layers (exceeding 30μm may cause short circuits) and cracks during drilling are common. |
|
- Blind via
- HDI (High-Density Interconnect)
- Differential routing
- Decoupling capacitor
- Thermal via
- Vacuum laminator

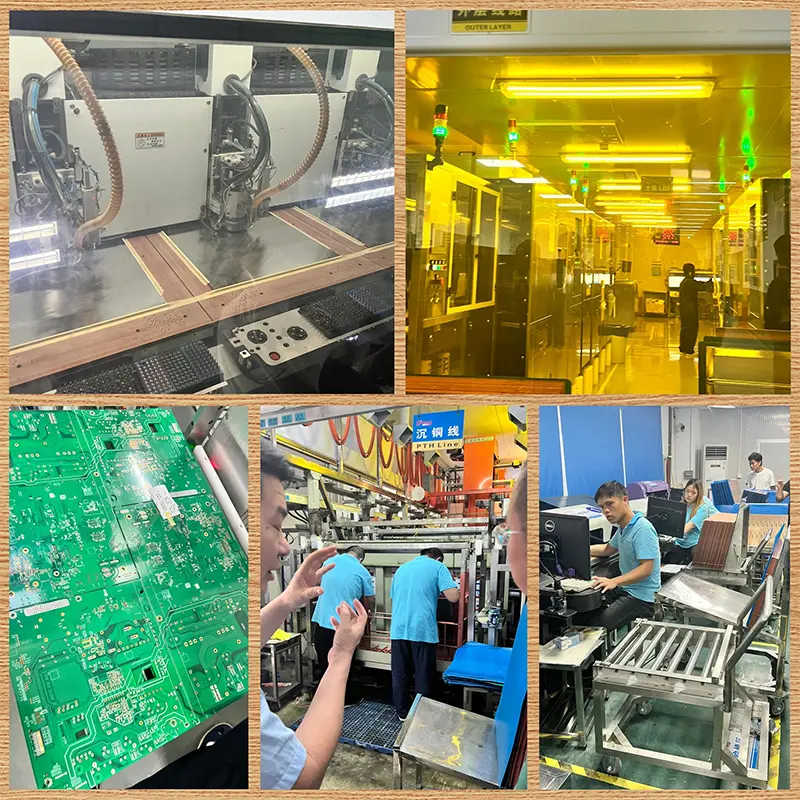

The manufacturing process of multilayer PCBs is complex. Parameter deviations or improper operations in any link—from early material selection to final shaping and testing—may affect the quality of finished products. Below are the critical considerations for each core manufacturing stage:
- Material Matching: Choose substrates based on application scenarios — FR-4 for general consumer electronics; Rogers materials (low dielectric loss) or polyimide (high temperature resistance) for high-frequency communication or aerospace equipment.
- Select copper foil thickness according to current requirements; thicker copper foil is recommended for high-current power circuits.
- Control the resin content of prepregs to avoid impacting interlayer adhesion and signal transmission.
- Circuit Patterning: Precisely control etching parameters to prevent line width deviations or residual circuits.
- Conduct black oxidation or brown oxidation treatment after etching to increase copper foil roughness and enhance interlayer bonding strength.
- Stack materials in strict accordance with the designed sequence to avoid interlayer misalignment.
- Strictly control lamination parameters: Temperature typically 180–220℃, pressure 3–5MPa, and lamination time must be precisely managed.
- Prioritize even-layer stacking with a symmetrical structure to minimize board warpage after lamination.
- Precision Drilling: Use CNC drilling machines; standard through-hole diameter controlled above 0.2mm with tolerance ±0.05mm or less.
- Distinguish application scenarios for through-holes, blind vias, and buried vias to avoid unnecessary complexity.
- Hole Metallization Quality: Form conductive hole walls through electroless copper plating and electrolytic copper plating; control plating thickness and uniformity.
- Remove residual impurities from hole walls to prevent plating peeling.
- Higher precision is required as outer circuits directly affect component soldering and signal transmission.
- HASL (Hot Air Solder Leveling): Cost-effective with good solderability, suitable for consumer electronics.
- Immersion Gold: Flat surface and stable performance, ideal for high-end precision equipment.
- OSP (Organic Solderability Preservative): Low-cost for mild operating environments; note poor protection under high temperature and humidity.
- Use CNC routing machines to process the board outline, with cutting precision controlled within ±0.2mm.
- Reserve 3–5mm wide process edges to facilitate subsequent SMT assembly and testing.
- Conduct visual inspection with AOI (Automated Optical Inspection) equipment to detect open circuits or uneven solder mask.
- Perform electrical performance tests (flying probe test, ICT test) to ensure impedance deviation is within ±10%.
- Use X-ray inspection for hidden multilayer circuits to verify via quality and interlayer alignment.
A multilayer PCB consists of three or more conductive copper layers separated by insulating prepreg layers, all bonded under high temperature and pressure. Unlike single or double-layer PCBs, multilayer boards support far more complex circuitry within a compact footprint, enabling higher performance, better signal integrity, and reduced electromagnetic interference — making them essential for advanced electronics such as smartphones, servers, and medical devices.
The five primary design challenges are: (1) Signal integrity — managing reflection and crosstalk in high-speed traces; (2) Power integrity — controlling noise and voltage fluctuations across power planes; (3) Wiring and routability — efficiently routing traces across many layers; (4) Heat dissipation — preventing thermal buildup in high-density areas; and (5) Interlayer alignment — maintaining precise copper layer registration during lamination and drilling to avoid short circuits or open connections.
The most widely used substrate is FR-4 (epoxy glass fiber), which offers a good balance of cost, mechanical strength, and electrical performance for general consumer electronics. For high-frequency or high-temperature applications, Rogers materials (low dielectric loss) are preferred for RF/microwave circuits, while polyimide substrates are used in aerospace and military equipment requiring superior thermal resistance. Copper foil thickness is selected based on current-carrying requirements.
Through-holes pass completely through all layers of the PCB and are the most common and cost-effective via type. Blind vias connect an outer layer to one or more inner layers without passing through the entire board, saving space on the opposite side. Buried vias connect only inner layers and are completely hidden within the board stackup — they are often used in HDI (High-Density Interconnect) designs for BGA packages where routing space is extremely limited. Each type adds manufacturing complexity and cost.
The three most common surface finishes are: HASL (Hot Air Solder Leveling) — cost-effective and widely compatible, best for standard consumer electronics; Immersion Gold (ENIG) — provides a flat, oxidation-resistant surface ideal for fine-pitch components and high-reliability applications; and OSP (Organic Solderability Preservative) — a low-cost, environmentally friendly option suitable for mild operating environments, though it offers less protection against heat and humidity. Your choice should be based on component pitch, operating environment, and budget.
Quality verification involves multiple inspection stages: AOI (Automated Optical Inspection) detects surface defects such as open circuits, short circuits, and solder mask irregularities. Flying probe tests and ICT (In-Circuit Testing) verify electrical performance and ensure impedance deviation stays within ±10%. X-ray inspection is used to examine hidden inner-layer vias, BGA solder joints, and interlayer alignment that cannot be seen visually. Together, these methods ensure the reliability and functionality of the finished multilayer PCB.
