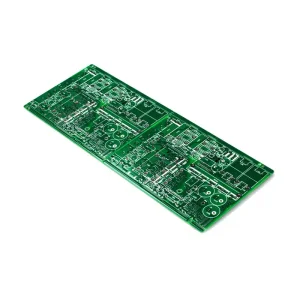

Engineering Validation Prototypes & Board Solutions
Accelerate your physical validation phase with high-precision fabrication, ultra-dense routing, and custom stackups engineered for advanced electronic platforms.
Global PCB Prototyping Megatrends & Sourcing Realities
In high-velocity electronic hardware sectors, physical board prototyping is no longer merely a preliminary fabrication checkbox—it represents the primary risk-mitigation stage determining commercial viability.
The Paradigm Shift in Hardware Time-to-Market (TTM)
Modern engineering teams in autonomous robotics, Edge AI computing, and biomedical sensor development face shrinking commercialization cycles. Where R&D cycles once allowed 12 to 16 weeks for board revisions, contemporary global competitiveness demands iterative prototype spins within 48 to 72 hours. When evaluating options to buy fast PCB prototype quotes & pricelists, engineering directors look beyond board unit costs; they evaluate cumulative verification drag. Unplanned revision loops driven by fabrication non-conformance or unvetted component stock quickly outstrip initial manufacturing outlays.
To resolve this friction, rapid prototype sourcing has evolved from simple quick-turn etching into full-stack concurrent engineering. Leading suppliers integrate automated Gerber analysis algorithms, IPC-7351B footprint validation, and real-time electronic component supply-chain APIs into early quoting mechanisms.
What Global OEMs Require in 2026
- Native DFM Verification: Automated design-for-manufacturability feedback flagging trace necking, thermal trap relief, and solder bridging risks within 2 hours.
- Zero-Minimum MOQ: Fluid scalability from 1-piece engineering proof-of-concept (POC) to 500-piece pilot runs without tooling penalties.
- Unified Bill of Materials (BOM): Direct API integration with tier-1 global semiconductor distributors (TI, ADI, STMicroelectronics, Murata) preventing counterfeit stock.
- MES Full Traceability: End-to-end component reel lot tracking, reflow profile logging, and AOI optical diagnostic archives.
First-Pass SMT Yield
Multi-stage automated 3D SPI and inline optical inspection
Fast-Turn Ex-Factory
Quick-turn double and multilayer prototypes ready for shipment
SMT Micro Placement
High-precision placement including 0.35mm pitch BGAs
Full MES Traceability
Complete material, process, and operator traceability per batch
China's Hardware Silicon Valley: Ecosystem Resilience & Speed
Why Shenzhen's concentrated hardware supply chain delivers unparalleled cost efficiency, localized supply resilience, and engineering turnaround.
The Bao'an Manufacturing Cluster Advantage
Located in Shenzhen's Bao'an District, our manufacturing facility operates at the nexus of the world's dense electronic component market. Within a 30-minute radius, our sourcing engineers can physically source, verify, and deliver specialized passive arrays, hard-to-find silicon from certified authorized franchises, and customized metal heat sinks. This geographic density compresses weeks of international logistical lead times into hours.

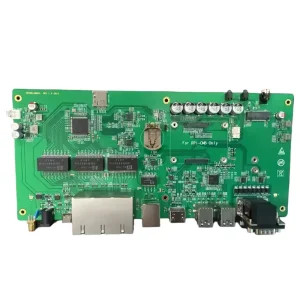

Through our Manufacturing Execution System (MES), incoming raw laminates (Shengyi, Isola, Rogers, Panasonic Megtron) and precision active components undergo incoming quality control (IQC) before barcodes bind them to specific panel lots. Whether you are assembling single-board computers like Raspberry Pi expansion modules or 60-layer high-frequency radar boards, every automated drill, chemical copper deposition bath, and reflow peak is mapped to production logs.
Comprehensive PCB Prototype & Assembly Engineering Matrix
| Process Parameter | Standard Capabilities | Advanced & Quick-Turn Options | Verification Standard |
|---|---|---|---|

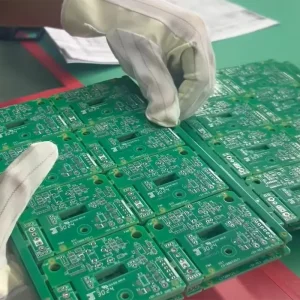

| Layer Counts | 1 – 8 Layers (FR-4 Standard) | Up to 60 Layers Multilayer / Rigid-Flex | IPC-A-600 Class 2 |
| Turnaround Speed | 3 – 5 Business Days | 24 – 48 Hours Expedited Fast-Turn | MES Real-Time |
| High-Frequency Substrates | Shengyi S1000-2M, IT-180A | Rogers 4350B, 4003C, Taconic, PTFE Hybrid | Dielectric Constant VNA |
| Surface Finishes | HASL Lead-Free, OSP | Electroless Nickel Immersion Gold (ENIG), ENEPIG, Hard Gold | X-Ray Fluorescence (XRF) |

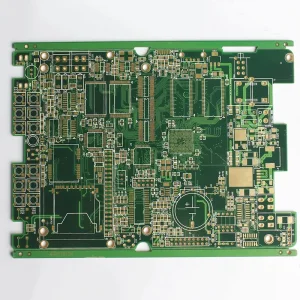

| Trace Width / Spacing | 3.5 mil / 3.5 mil (0.09mm) | 2.0 mil / 2.0 mil (0.05mm) for HDI builds | AOI Automated Scan |
| SMT Pitch / Components | 0402 passives, 0.5mm ICs | 01005 passives, 0.35mm ultra-fine BGA, QFN | 3D AOI & X-Ray 3D |
| Inspection Protocol | Flying Probe Test, Visual QC | 100% In-Circuit Test (ICT), Functional (FCT), Thermal Aging | IPC-A-610 Class 3 |
Engineering Validation Across Mission-Critical Verticals
From micro-signal flexibility in wearables to high-power dissipation in grid switching, our fast prototype platforms adapt directly to specific end-market stress factors.
RF, Microwave & Anti-Drone

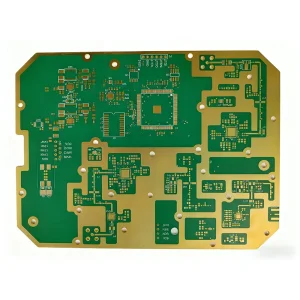

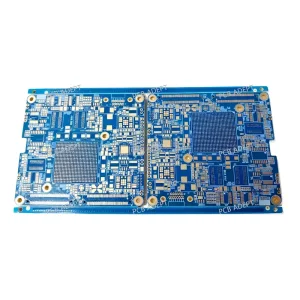

Signal attenuation, phase stability, and parasitic capacitance govern microwave systems. We build high-speed hybrid prototypes using PTFE and low-loss Rogers laminates paired with standard FR-4 cores. This gives anti-drone RF jammers and high-gain antenna arrays military-grade signal integrity while controlling raw material costs.
Medical Diagnostics & Health Wearables

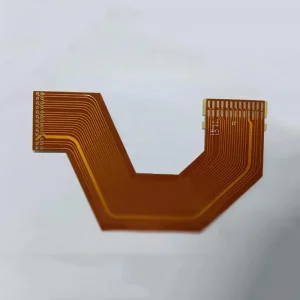

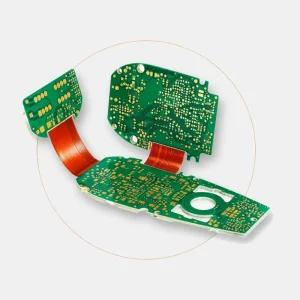

Wearables demand thin-core polyimide flexible circuits and rigid-flex configurations that survive repeated bending cycles without trace fractures. Our cleanroom facilities place 01005 passives onto high-density micro-vias, enabling biocompatible diagnostic implants and wearable patient vitals monitors.
Automotive BMS & Industrial Power
Automotive Battery Management Systems (BMS) and renewable power inverters contend with severe thermal cycling and high amperage. We implement heavy copper (up to 6 oz), aluminum substrate backing, and ceramic base materials to guarantee robust thermal conduction, mechanical rigidity, and electrical isolation under IPC Class 3 standards.
Transparent Pricing Anatomy: PCB Prototype Quotes Demystified
Understanding cost drivers in rapid prototype fabrication helps buyers prevent budget surprises and maximize project margins.
Key Cost Drivers in Fast Prototype Quotes
When you request a quotation or pricelist for fast-turn PCB prototypes, pricing formulas incorporate several interdependent technical variables:
- Substrate Selection & TG Rating: Standard FR-4 (TG130-140) represents the lowest baseline cost. Moving to High-TG (TG170-180), halogen-free, or specialized Rogers high-frequency laminates adjusts base raw material expense.
- Stackup Complexity & Lamination Cycles: Standard through-hole multi-layer builds require only a single lamination cycle. Introducing blind or buried micro-vias, staggered HDI structures, or sequential rigid-flex pressing increases press chamber time and validation steps.
- Aspect Ratio & Micro-Drilling: Plated through-hole aspect ratios exceeding 10:1 require specialized chemical agitation and slower drilling cycles, affecting overall panel throughput.
- Surface Finish Metallurgy: While lead-free HASL remains economical for larger pitches, ENIG and ENEPIG require pure gold salt chemistry baths, adding material-linked surcharges that scale with board surface area.
DFM Cost Optimization Checklist
By reviewing designs against these five practical criteria before submitting Gerber files, engineering teams regularly achieve 10% to 25% cost reductions on prototype builds:
- Standardize Via Diameters: Minimize unique drill tool diameters. Staying with 0.2mm mechanical hole minimums avoids micro-laser drilling surcharges where HDI routing isn't mandatory.
- Maintain Clear Trace/Spacing: Keeping trace widths and clearances at or above 4/4 mil bypasses advanced chemical cleanroom etching charges.
- Optimize Component Footprints: Ensure SMT footprints incorporate standard solder-mask dams (minimum 3 mil) to eliminate manual solder bridging inspection steps.
- Consolidate Passive Values: Reducing unique line items in the Bill of Materials cuts pick-and-place feeder setup times, lowering turn costs.
- Choose Panel Arrays Wisely: Include mouse-bites and breakout rails on sub-50mm boards to facilitate automated high-speed SMT assembly and inline AOI conveyor processing.
Frequently Asked Questions: Fast PCB Prototyping & Quoting
Comprehensive engineering, procurement, and logistics insights for hardware teams sourcing boards from China.
What essential technical documentation is needed for an accurate turnkey prototype quote?
How fast can PCB ADEPT deliver double-sided and multilayer prototypes?
How do you guarantee authentic components and eliminate counterfeit risk?
What surface finish should I specify for fine-pitch BGA or QFN prototypes?
Can you support box-build and mechanical enclosure integration for pilot validation?
Specialized Circuit Modules & Expansion Technologies
Explore our extended manufacturing categories, from flexible interconnection ribbons and rapid embedded sub-assemblies to multi-layer evaluation boards.
Ready to Quote Your Prototype Project?
Send your Gerber files, Bill of Materials, and stackup specifications to our Shenzhen engineering hub. Receive a comprehensive DFM audit, detailed component breakdown, and fast-turn quote within 2 hours.
